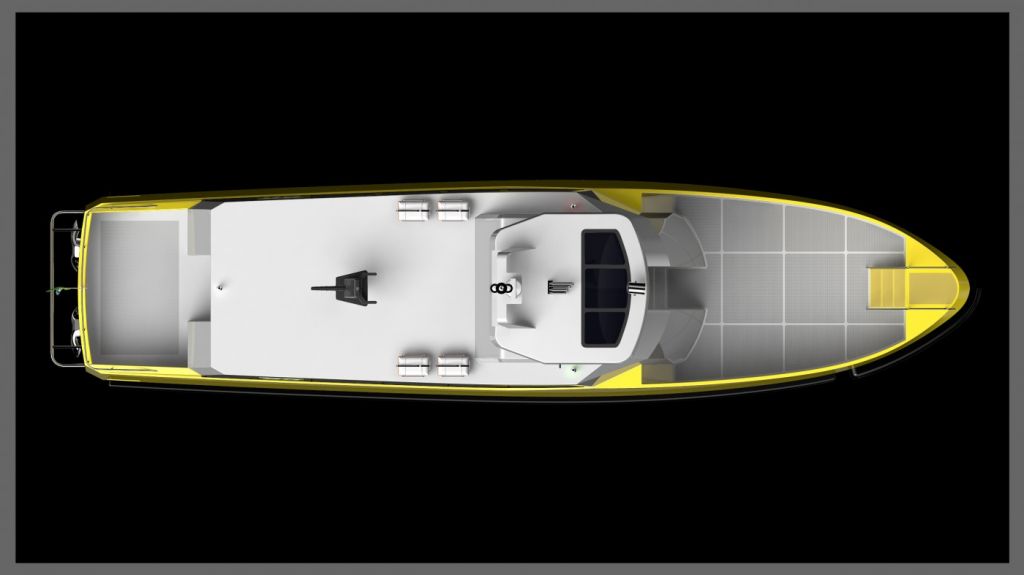

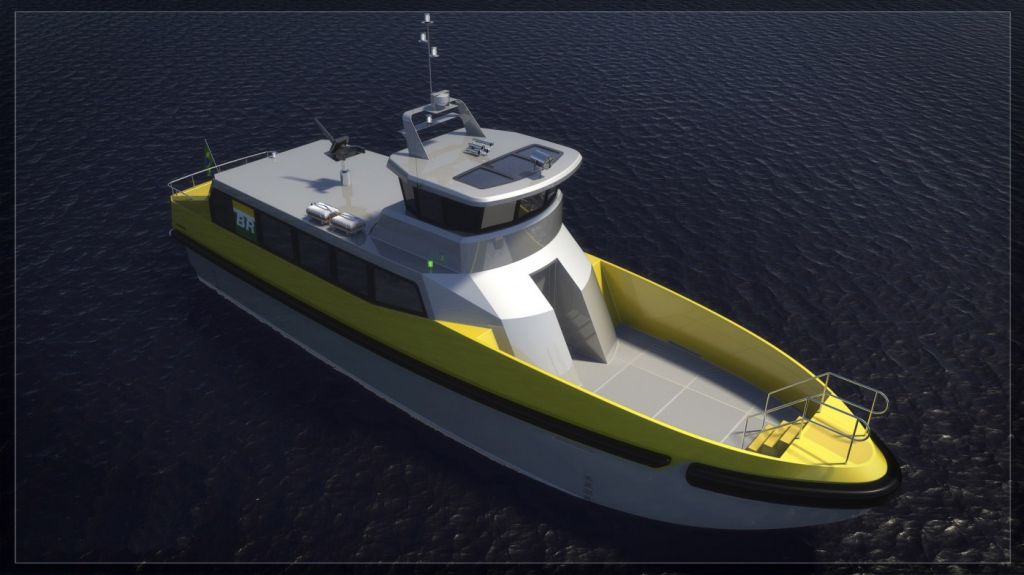

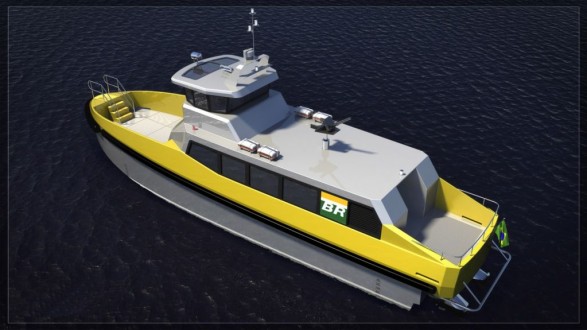

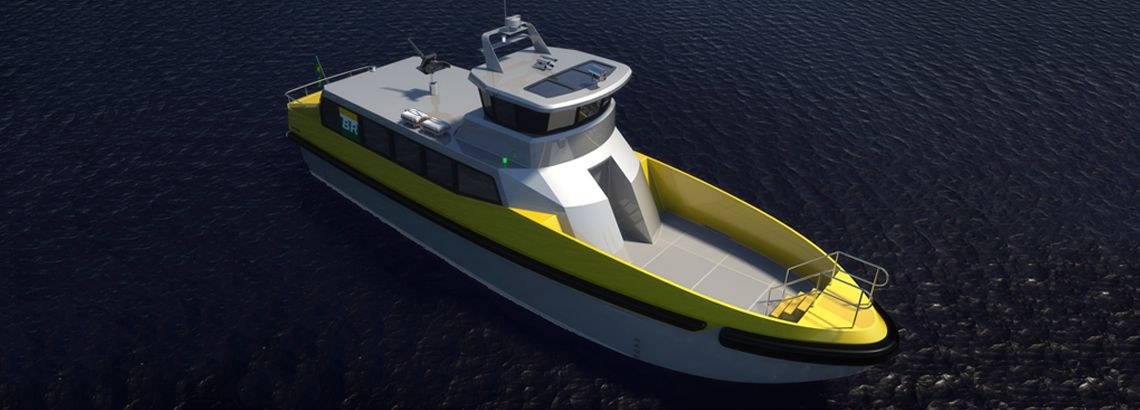

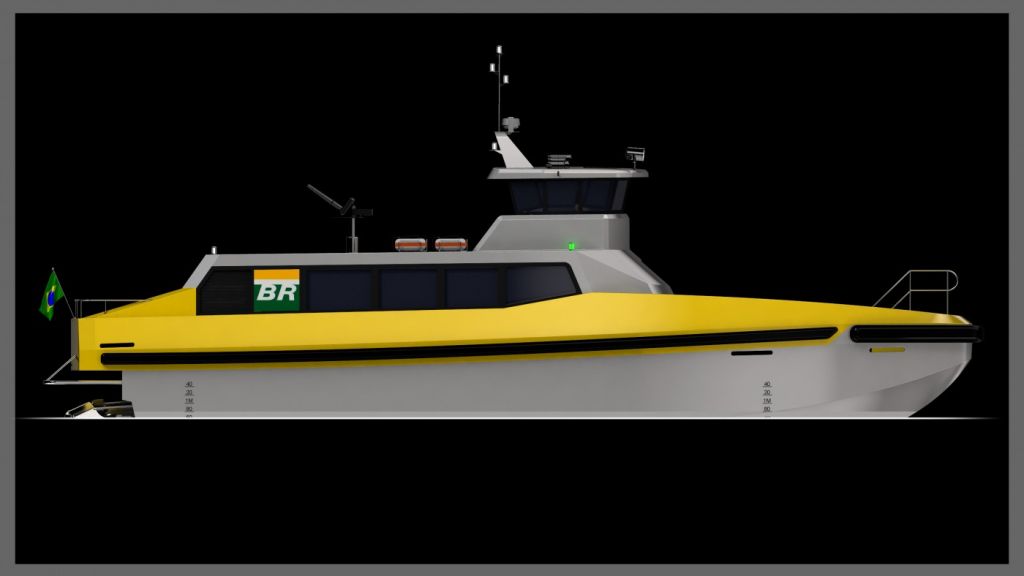

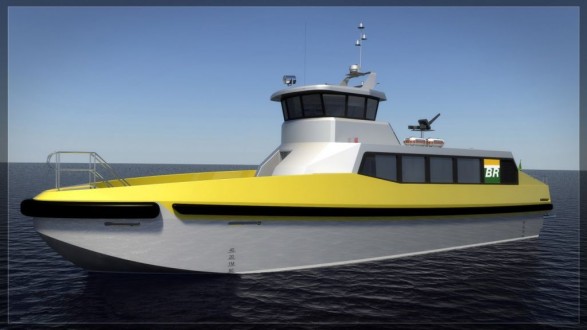

ARESA 2300 CTV

CREW TRANSFER VESSEL

The ARESA 2300 CTV has been designed for the transport of personnel to offshore installations, in order to ensure the continuous exchange of crews that occur in this type of operational areas, where the rotation of personnel is constant.

Its deep-V hull allows it to sail in great comfort in adverse sea conditions, even at high speeds. Equipped with comfortable seats for the crew, for long sailing trips in maximum comfort, fully air-conditioned passenger cabin, luggage and medium-sized equipment transport area and bar area for provisioning during the sea voyage.

Initially designed for waterjet propulsion and inboard diesel engines, it can also be fitted with standard propulsion with propellers, depending on the maximum speeds required.

Request more info
I have read and accept the privacy policy and the legal notice

Features

Principal particulars icon
Principal particulars
Length overall
24.00 m
Beam
6.30 m
Draught
0.90 m
Cargo deck area
30 m2
Generators
2 x 35 Kva
Deadweight icon
Deadweight
Crew
4 p
Passengers
26 p
Fuel
17.000 l
Fresh water
2.000 l
Black grey water
1.000 l
Performance icon
Performance
Speed
20 - 30 kn
Range
730 NM
Propulsion icon
Propulsion
Main engines
2.800 HP
Propulsion
Waterjet
Construction material icon
Construction material
Material
GRP
Equipment icon
Equipment
Comfortable seats for passengers
AACC
Office
Crane of 15 tn
Cargo hold
Missions and services icon
Missions and services
Offshore
Windfarms support
Crew transport
Cargo/goods transport
