ARESA 2200 PILOT

Pilot Boat

The ARESA 2200 PILOT has been specially designed for harbour pilotage missions, following the highest standards of safety and comfort in its design.

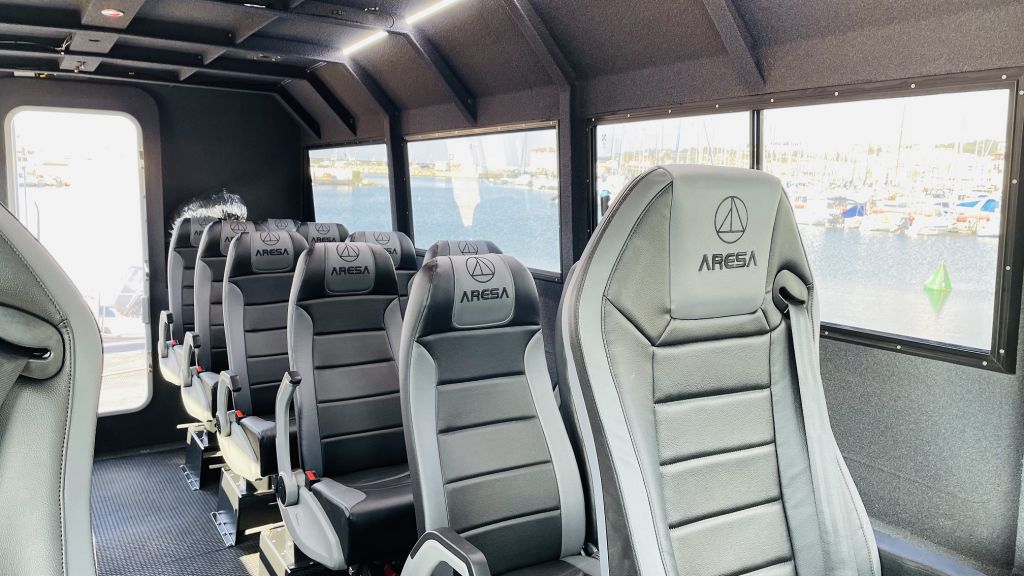

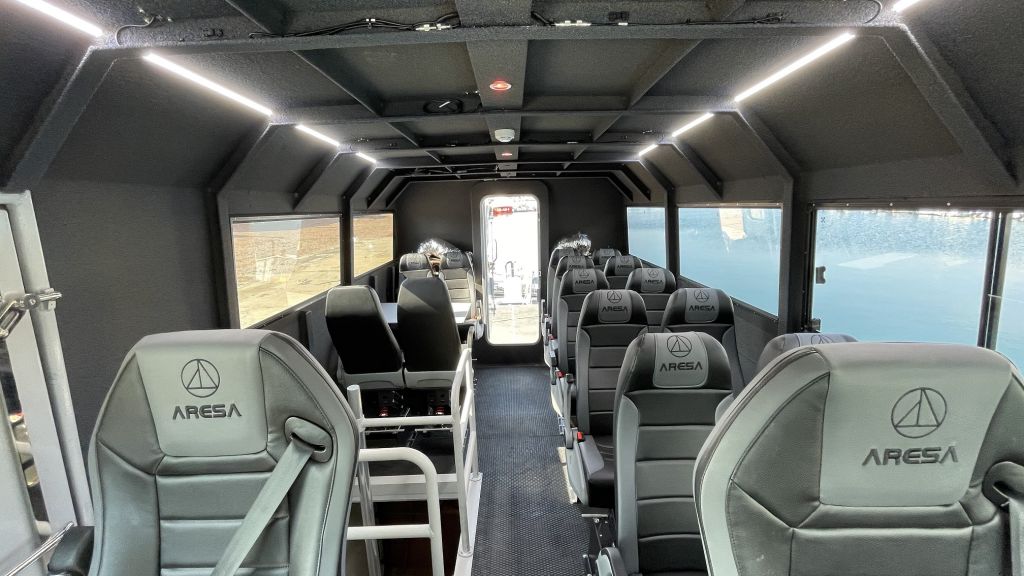

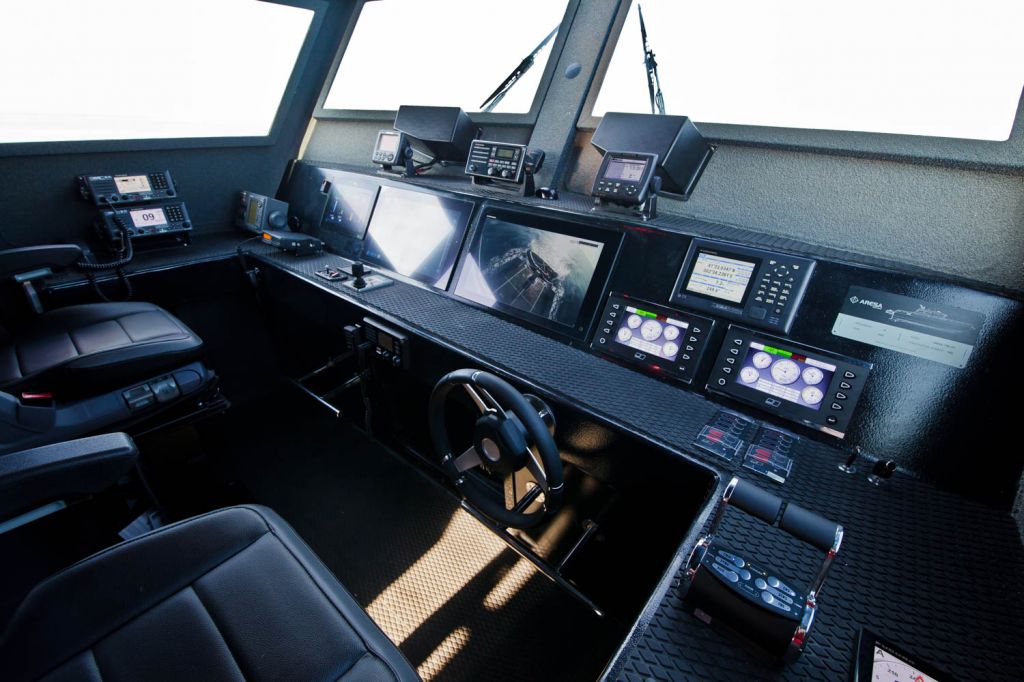

Its main cabin is equipped with a cushioned seat for high speed navigation and adverse sea conditions. A great visibility in its front part by means of windows in the roof facilitates boarding manoeuvres to other large vessels.

Its main deck is equipped with life-line fastening systems around the perimeter, offering maximum safety in boarding manoeuvres. The entire perimeter of the vessel is protected with a high density fender system that protects the hull from continuous impacts during manoeuvres.

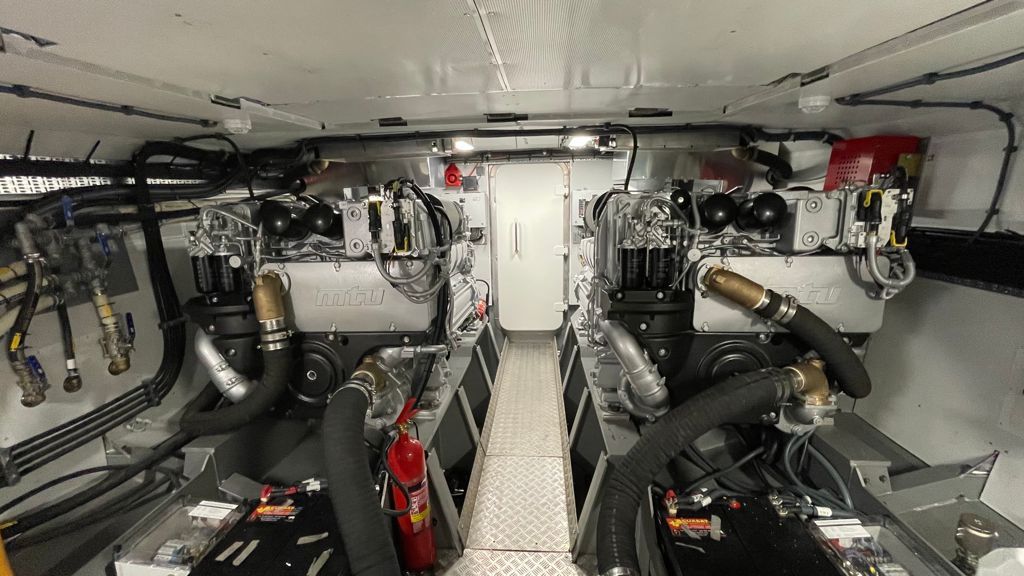

This vessel is equipped with inboard diesel engines that can be connected to a waterjet system or to a conventional propulsion system with propellers.

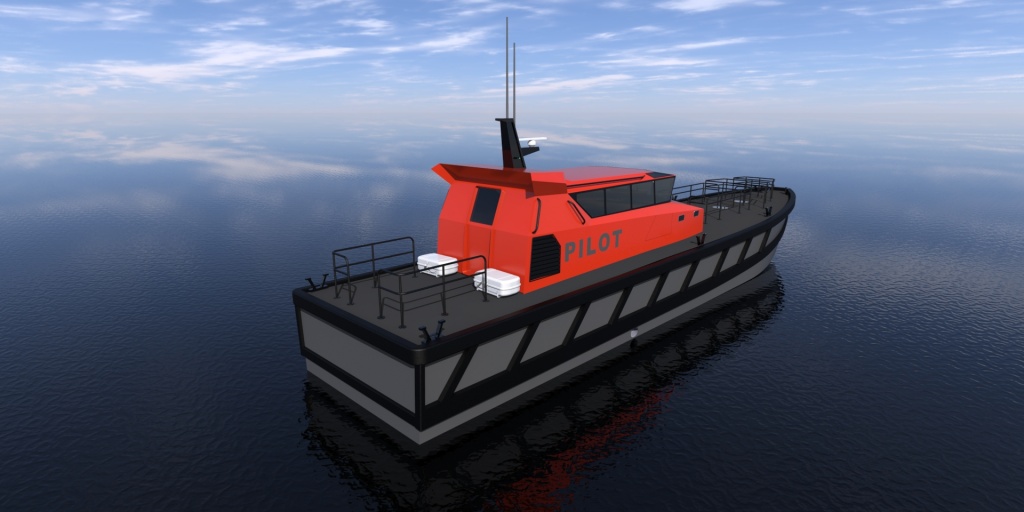

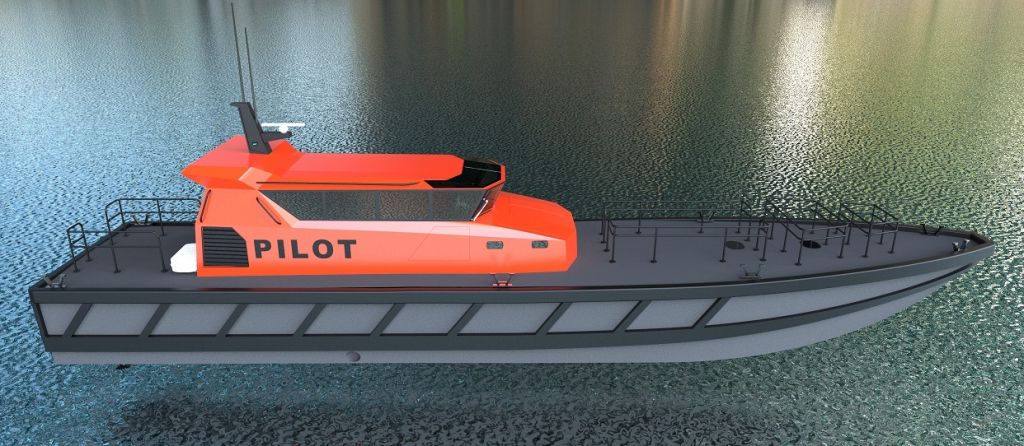

Pilot Boat photo 1

Pilot Boat photo 2

Pilot Boat photo 3

Pilot Boat photo 4

Pilot Boat photo 5

Pilot Boat photo 6

Pilot Boat photo 7

Pilot Boat photo 8

Pilot Boat photo 9

Pilot Boat photo 10

Pilot Boat photo 11

Pilot Boat photo 12

Pilot Boat photo 13

Pilot Boat photo 14

Pilot Boat photo 15

Pilot Boat photo 16

Pilot Boat photo 17

Pilot Boat photo 18

Features

Principal particulars icon

Principal particulars

Length overall

22.00 m

Beam

6.50 m

Draught

1.70 m

Deadweight icon

Deadweight

Crew

2

Passengers

9

Fuel

3.000 L

Fresh water

150 L

Black grey water

250 L

Performance icon

Performance

Max speed

30 kn

Cruise speed

25 kn

Range

200 NM

Propulsion icon

Propulsion

Main engines

1.460 HP

Equipment

Boarding ships in difficult sea conditions (Level 4 Douglas)

Fenders around the perimeter of the vessel

Wheelhouse with 360 º visibility.

Speeds of 14 Kn in very heavy seas.

Missions and services icon

Missions and services

Harbour pilot missions

Passenger movement into the harbour missions
