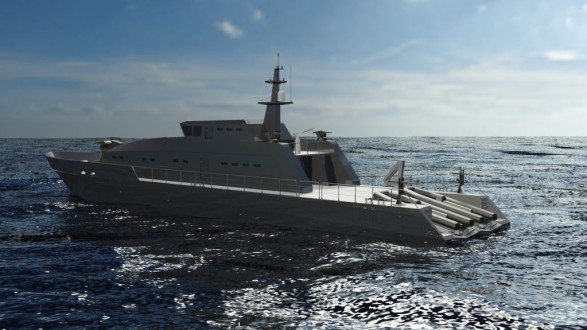

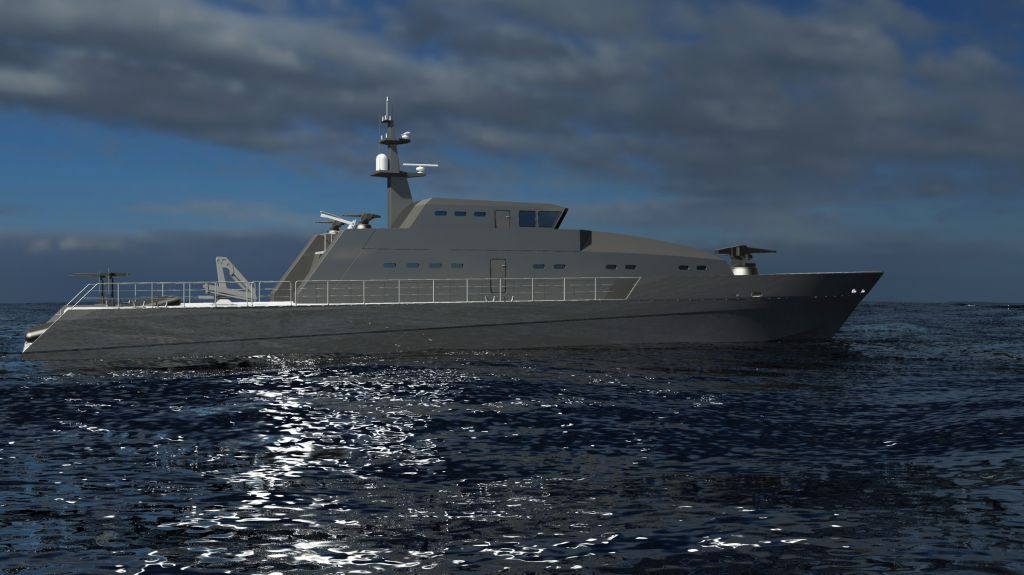

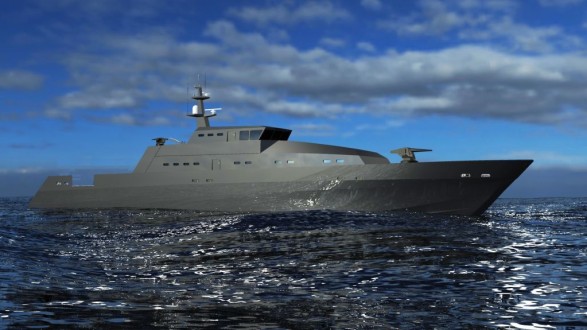

ARESA 6000 - 5000 THE GUARDIAN

Offshore Patrol Vessel OPV

The ARESA 6000 - 5000 OPV THE GUARDIAN is a multi-mission offshore patrol vessel capable of performing international ocean patrol missions, fast intervention craft missions and drone missions, among many others.  Built entirely in naval aluminium, it can also be built with composite superstructure in order to increase its autonomy.

With capacity for 35 crew members on board, it can perform missions of up to 30 days at sea without the need to refuel in port. Equipped with the necessary defence systems to carry out the missions that the end customer intends to execute in the waters of its final country of destination.

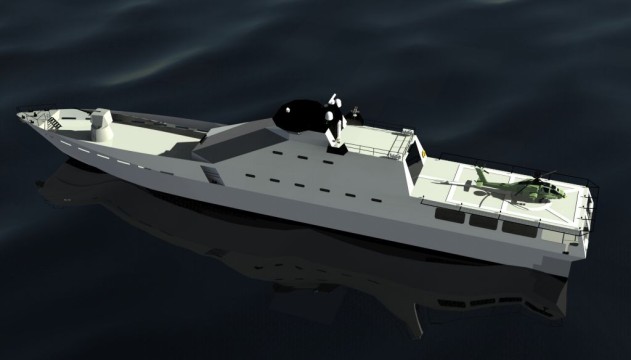

Naval defence electronics, countermeasures, the possibility of armouring its superstructure, a maritime base for aerial vehicles or drones and a rapid launch system for fast intervention vessels are just some of the equipment that make this vessel an ideal platform  for carrying out missions such as ocean patrols, anti-piracy or anti-drug missions and the control of the maritime limits of any sovereign country, as well as the performance of international cooperation and search and rescue missions.

Request more info
I have read and accept the privacy policy and the legal notice

Features

Principal particulars icon
Principal particulars
Length overall
60.00 - 50.00 m
Beam
10.00 - 9.00 m
Draught
1.60 m
Deadweight icon
Deadweight
Crew
40 p

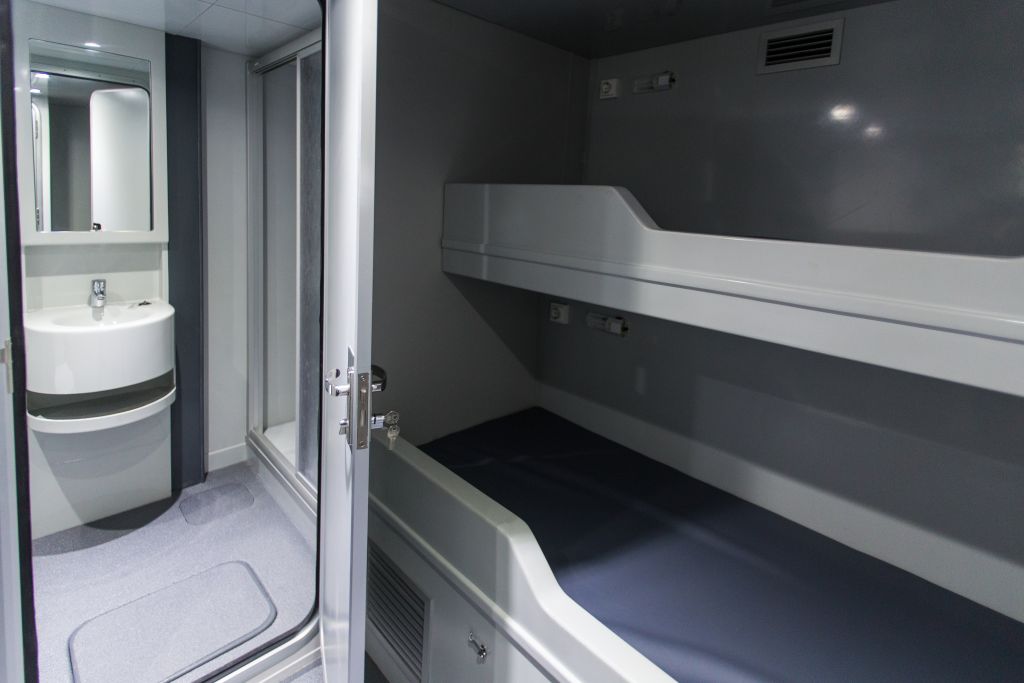

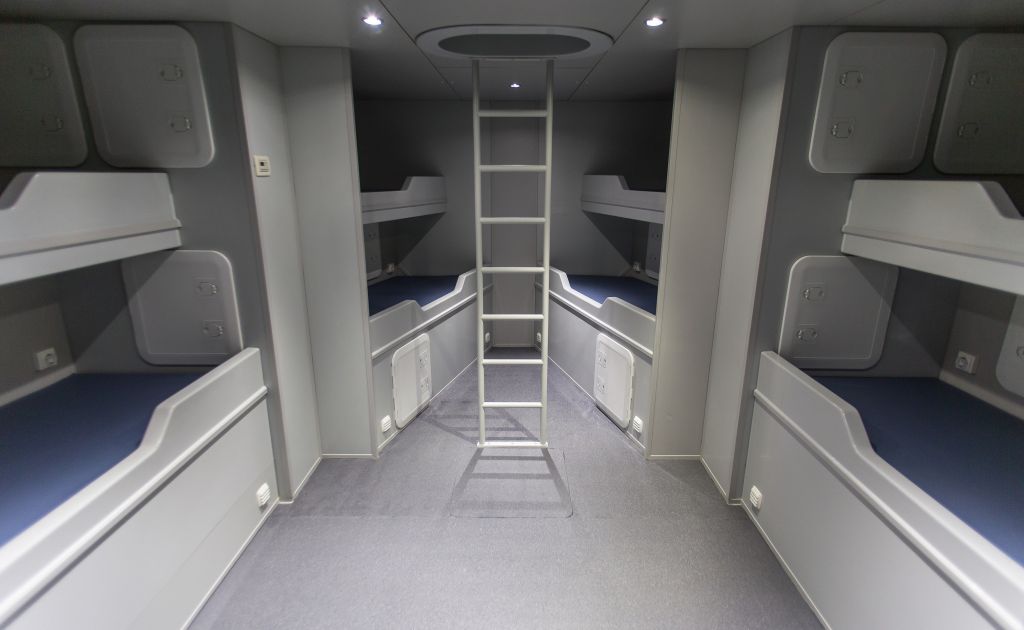

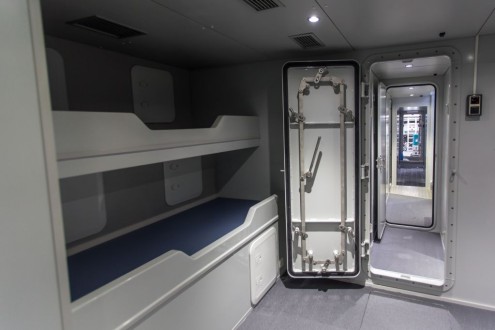

Cabins for
26 p
Fuel
60.000 l
Fresh water
5.000 l
Black grey water
600 l
Performance icon
Performance
Speed
20-35 kn
Propulsion icon
Propulsion
Main engines
7500 HP
Propulsion
Propeller
Construction material icon
Construction material
Material
STEEL / ALU / GRP
Equipment icon
Equipment
2 x ARESA RIB ramps for fast intervention
Fire fighting monitors up to 120l/h. Range 50m
Anti explosion fuel tank

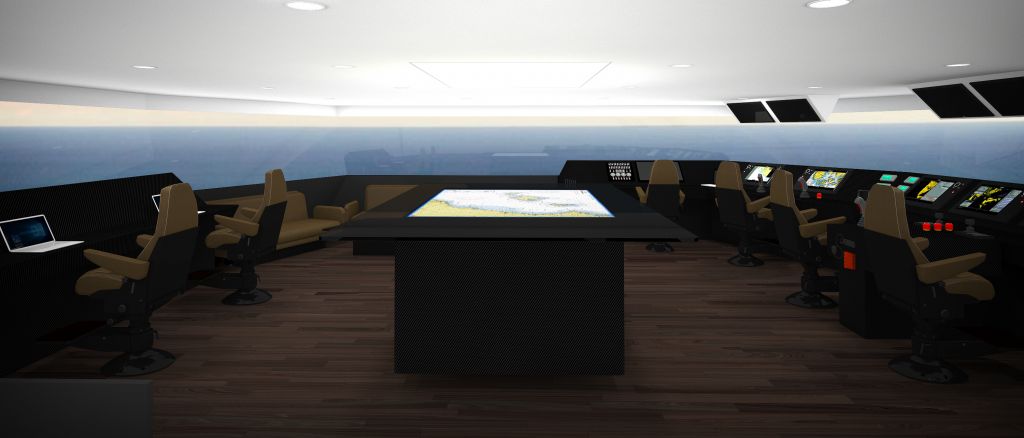

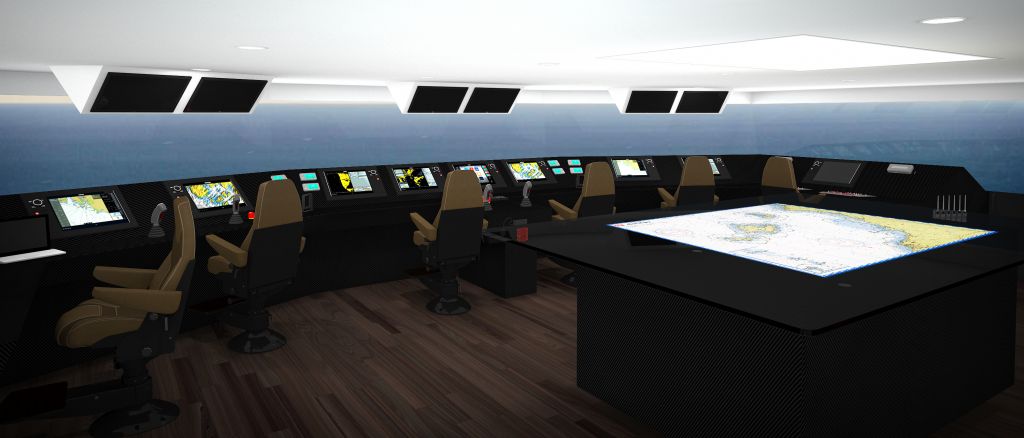

Armored Bridge : NIJ Level III+
Electronics: Custom
Missions and services icon
Missions and services
Offshore patrol Missions
International Cooperation Missions
Border Patrol Missions
Anti-Piracy Missions
Anti Smuggling Missions
Counter –Terrorism Missions
Troops Transport Missions
Search & Rescue Missions
Private security Missions
