ARESA 1800 CPV FIGHTER

High Speed Coastal Patrol Boat

The ARESA 1800 FIGTHER  ARMORED PATROL model is a high speed coastal patrol boat, ideal for the development of missions in the entire coastal area such as the protection of ports, anchorage areas or strategic coastal facilities.

This type of patrol boats are characterised by having a very short response time, from the moment they receive the intervention order until they reach the point of conflict, which makes these units platforms of great interest for the protection of any type of asset in the coastal area.

They can reach speeds of up to 50 knots and are equipped with a fully armoured upper cabin for the protection of the entire crew. It also has sufficient capacity to stay up to 7 days at sea and carry 17 occupants, of which 5 are the vessel's own crew.

It is also equipped with an aft platform for a dinghy and has a flybridge version on the main deck to improve boarding manoeuvres with other vessels or mooring and day patrol manoeuvres.

Request more info
I have read and accept the privacy policy and the legal notice

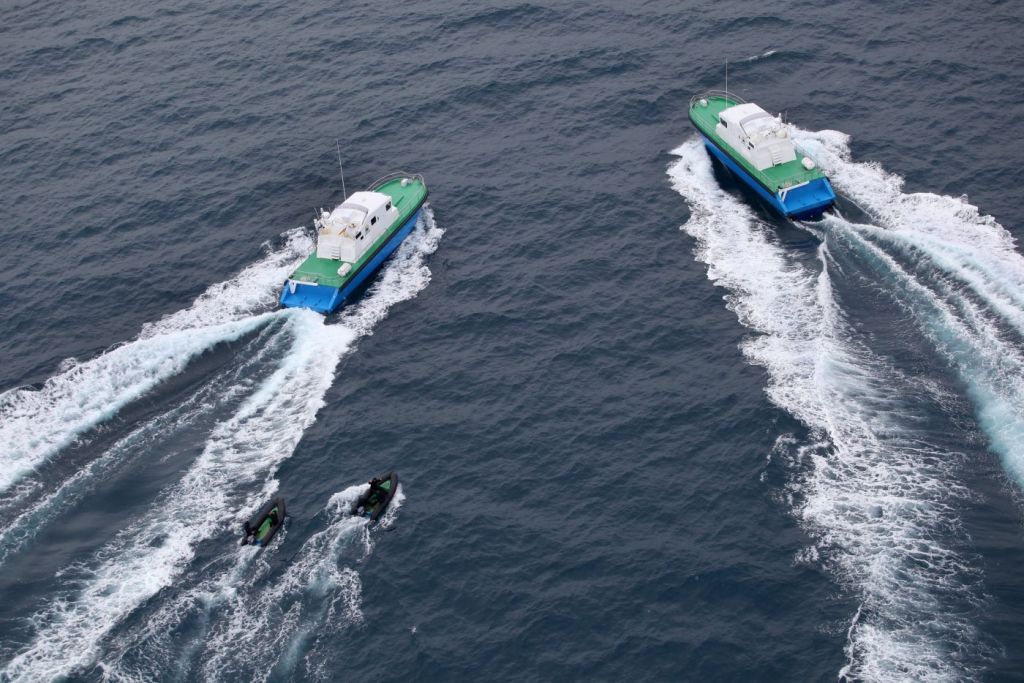

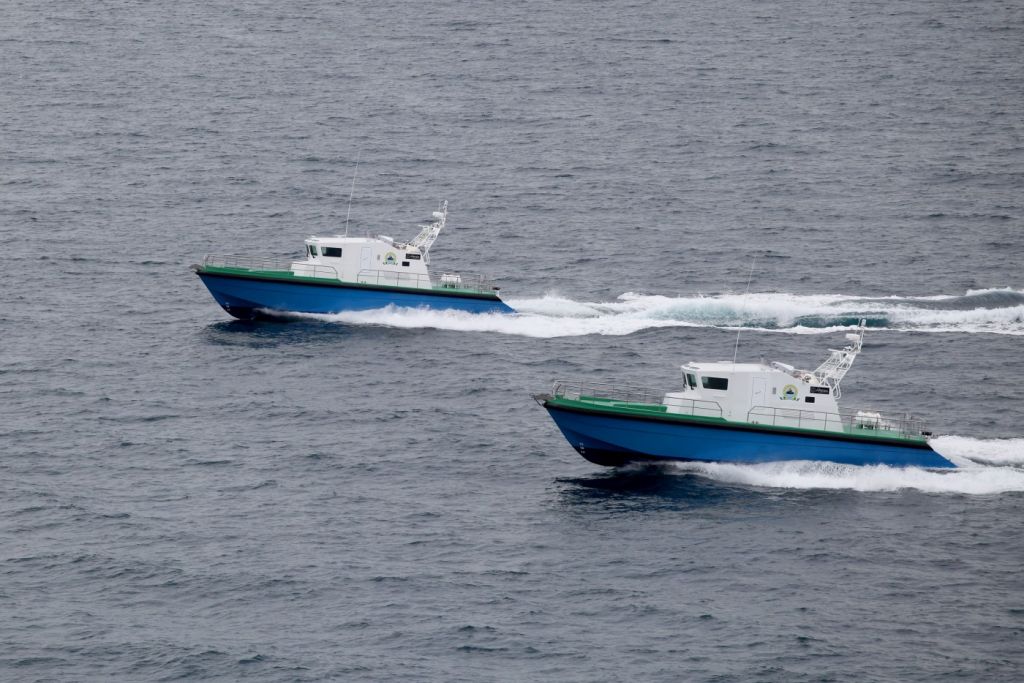

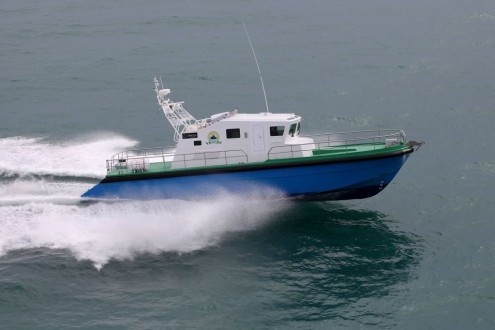

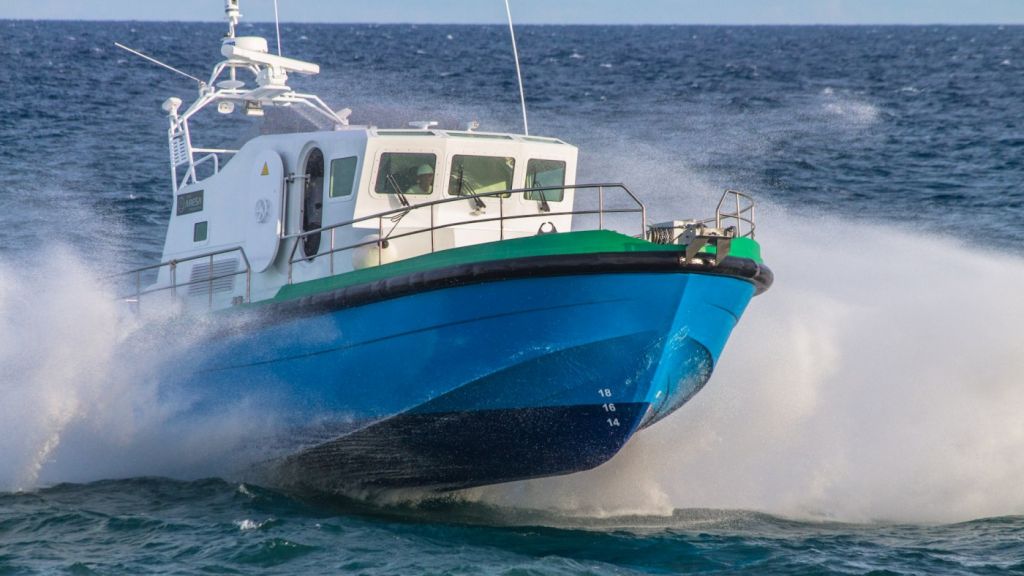

High Speed Coastal Patrol Boat photo 1

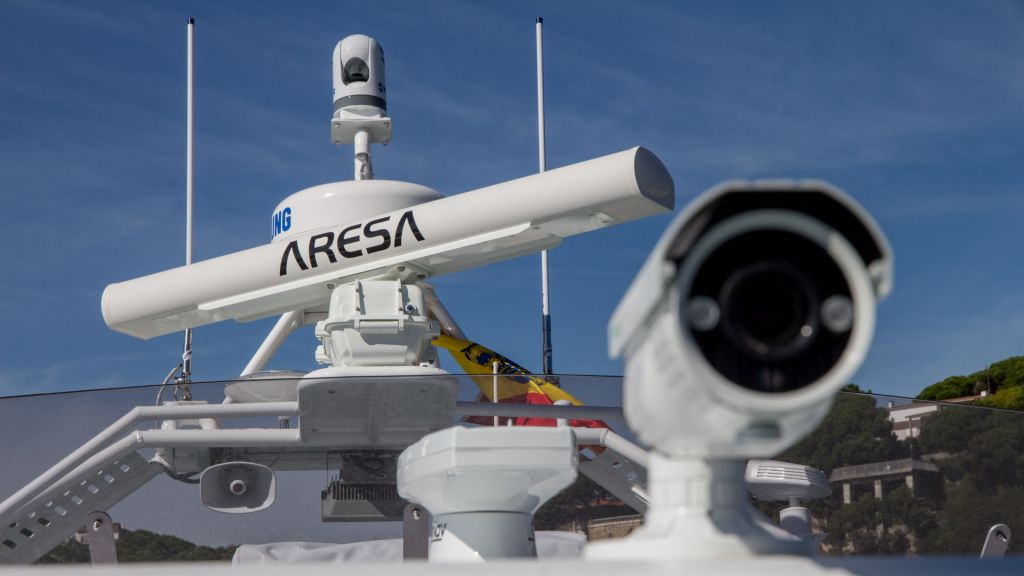

High Speed Coastal Patrol Boat photo 2

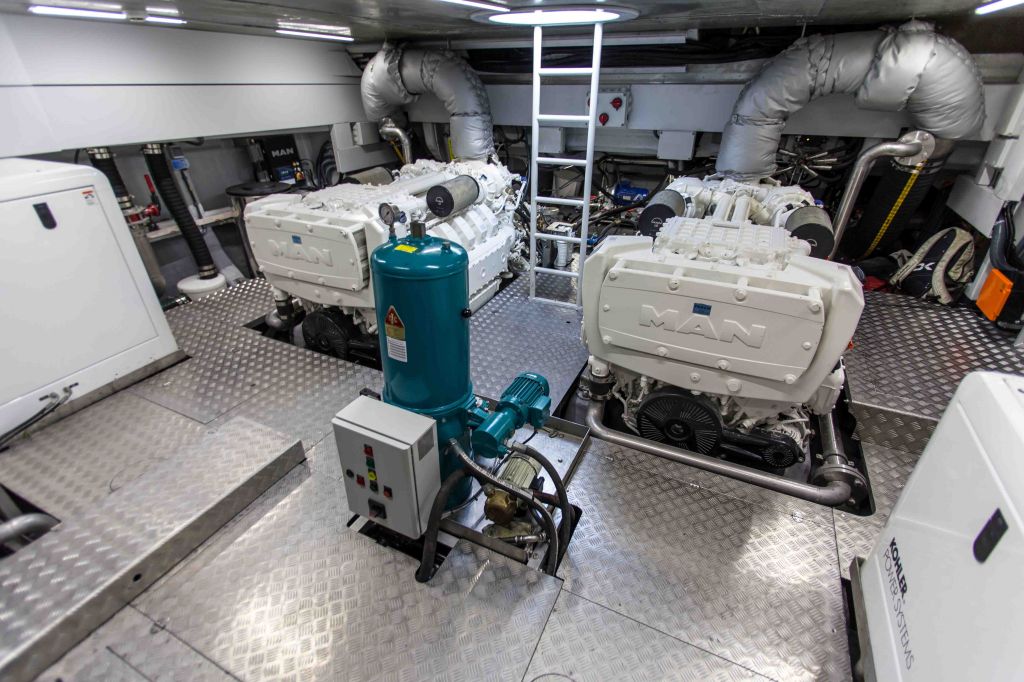

High Speed Coastal Patrol Boat photo 3

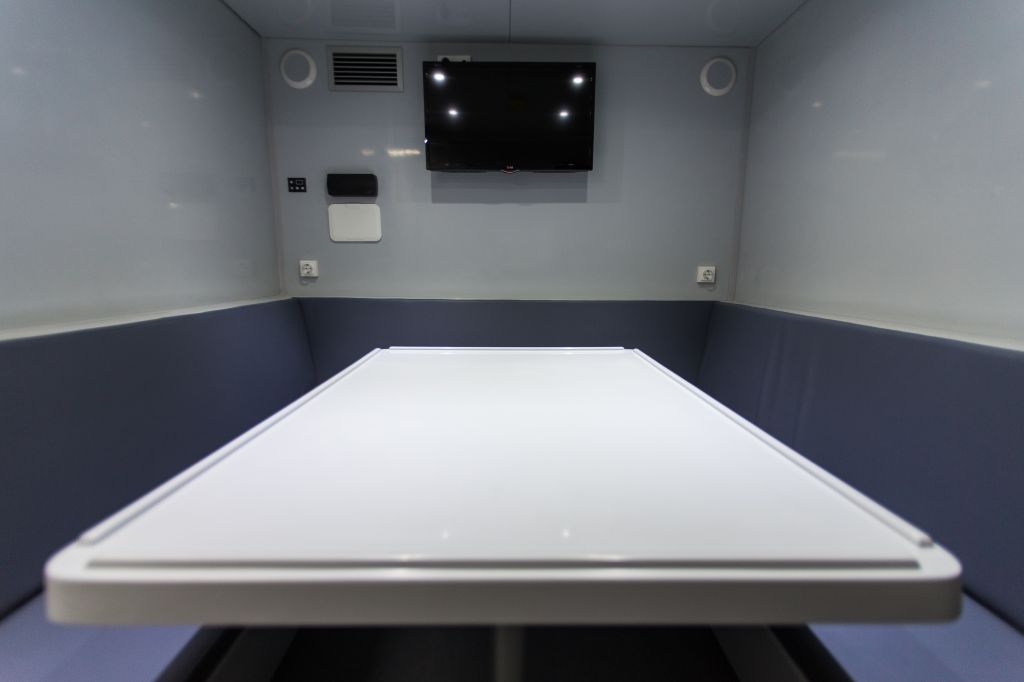

High Speed Coastal Patrol Boat photo 4
High Speed Coastal Patrol Boat photo 5
High Speed Coastal Patrol Boat photo 6
High Speed Coastal Patrol Boat photo 7
High Speed Coastal Patrol Boat photo 8
High Speed Coastal Patrol Boat photo 9
High Speed Coastal Patrol Boat photo 10
High Speed Coastal Patrol Boat photo 11

Features

Principal particulars icon
Principal particulars
Length overall
17.00 / 20.00 m
Beam
4.50 m
Draught
1.60 m
Full displacement
25 tn
Light displacement
19 tn
Generators
2 x 20 Kw
Deadweight icon
Deadweight
Crew
16 p
Shock mitigation seats
2

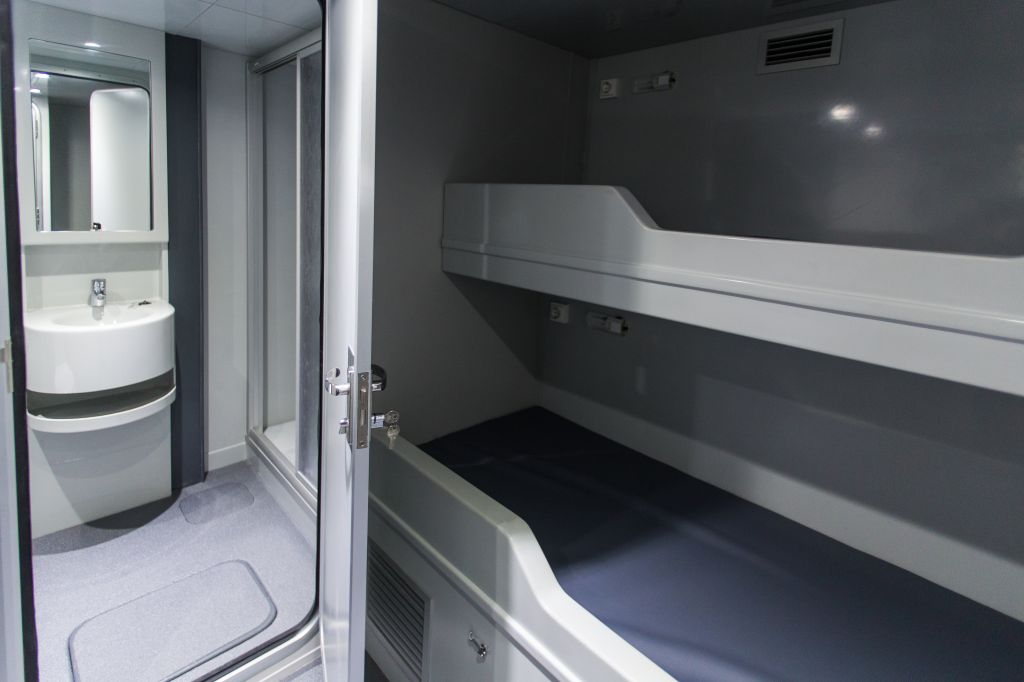

Cabins for
5 p
Fuel
4.000 l
Fresh water
1.000 l
Black grey water
400 l
Load
6 tn
Performance icon
Performance
Speed
30-50 kn
Range
325 NM
Propulsion icon
Propulsion
Main engines
2.000 / 3000 HP
Propulsion
PROPELLERS or WATERJETS
Construction material icon
Construction material
Material
GRP or ALUMINIUM
Equipment icon
Equipment
ARESA 400 Commandos RIB  for fast intervention
Fire fighting monitors up to 120l/h. Range 50m
Anti explosion fuel tank
Armored Bridge : NIJ Level III+ (Optional)
Electronics: Custom
Missions and services icon
Missions and services
Coastal patrol Missions
Border Patrol Missions
Anti-Piracy Missions
Anti Smuggling Missions
Counter –Terrorism Missions
Troops Transport Missions
Search & Rescue Missions
Private security Missions
High Speed Coastal Patrol Boat video

Related products

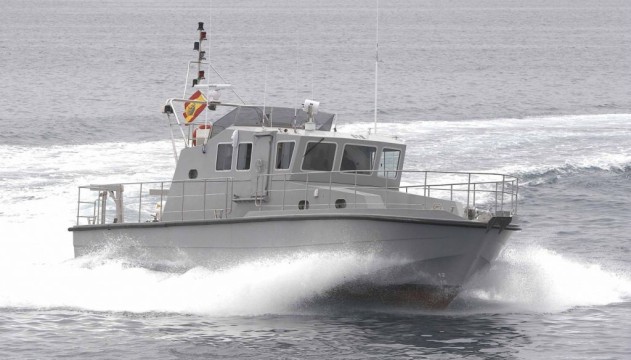

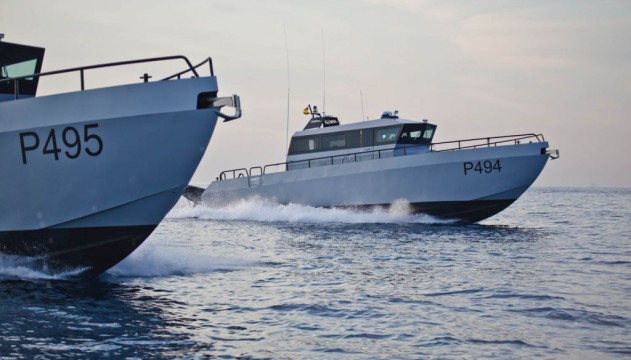

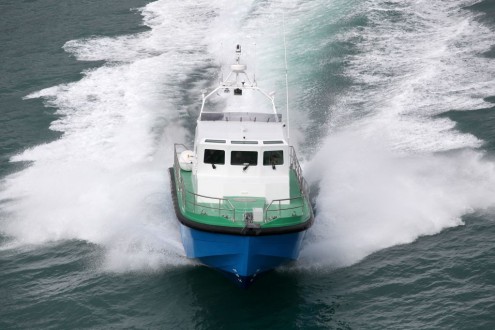

Armored Coastal Patrol Boat
