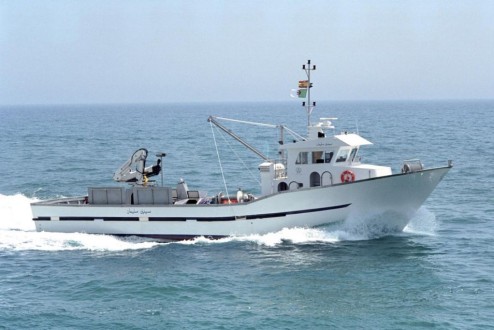

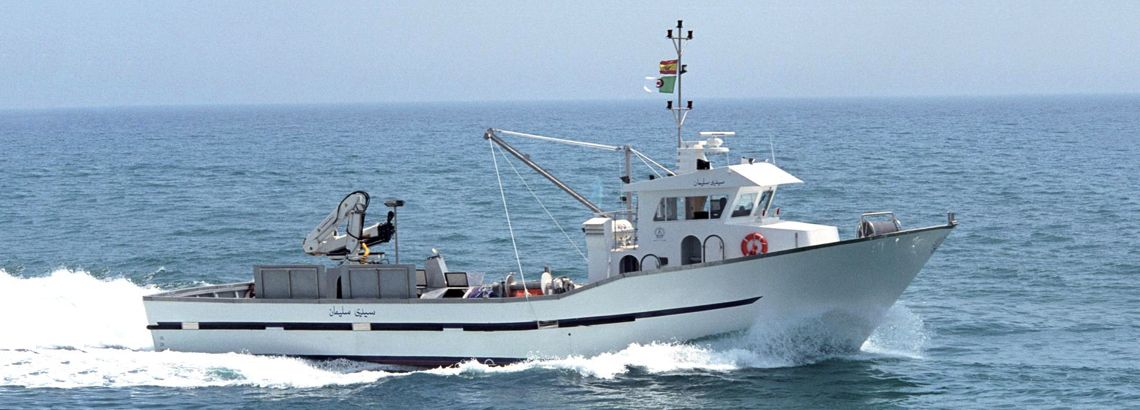

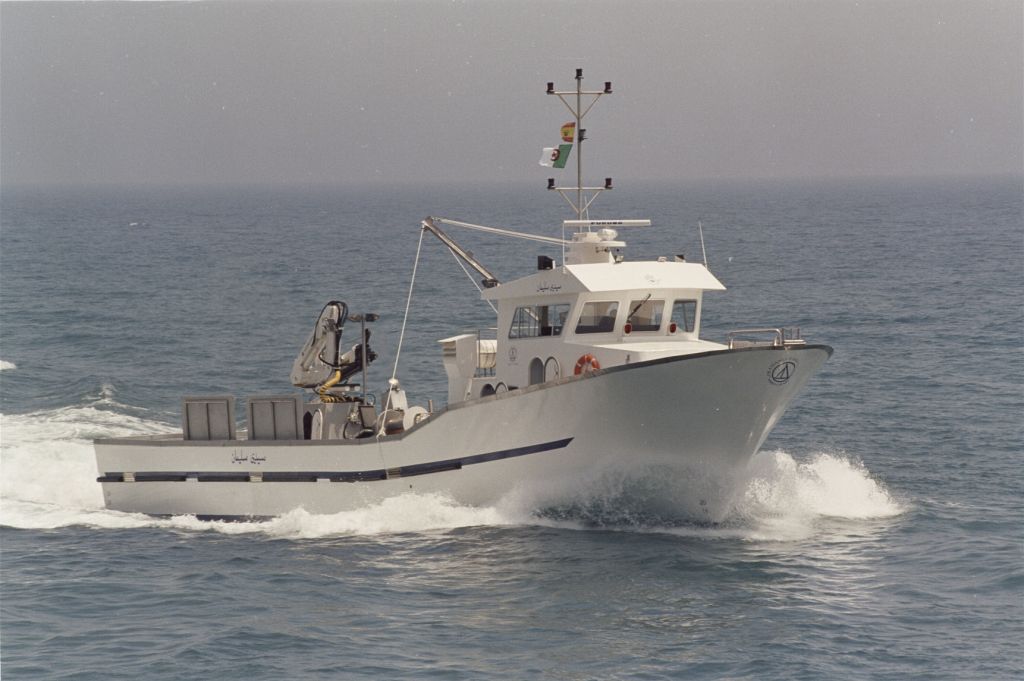

ARESA 3000 - 2500 S
Features
Principal particulars
Length overall
25.00 m
Beam
6.30 m
Draught
2.80 m
Light displacement draught
1.90 m
Full displacement draught
2.10 m
Depth
2.50 m
Full displacement
84.10 tn
Light displacement
61.20 tn
Gross tonnage
68 GT
Generators
2 x 30 KVA
Deadweight
Crew
17 p

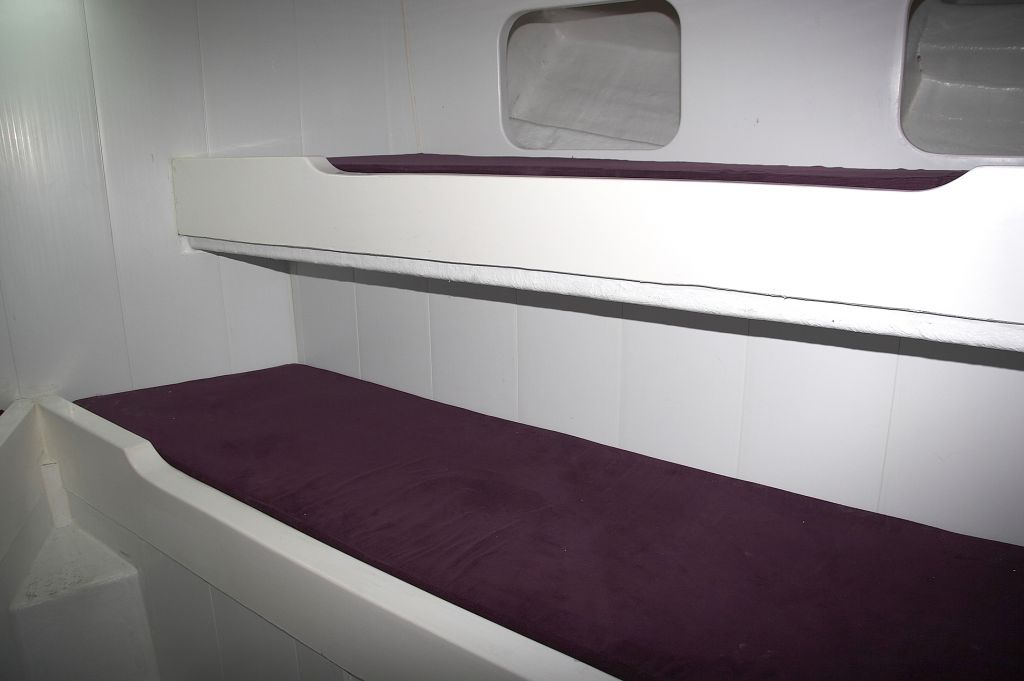

Cabins for
17 p
Fuel
12.000 l
Fresh water
2.000 l
Black grey water
240 l
Hydraulic oil
500 l

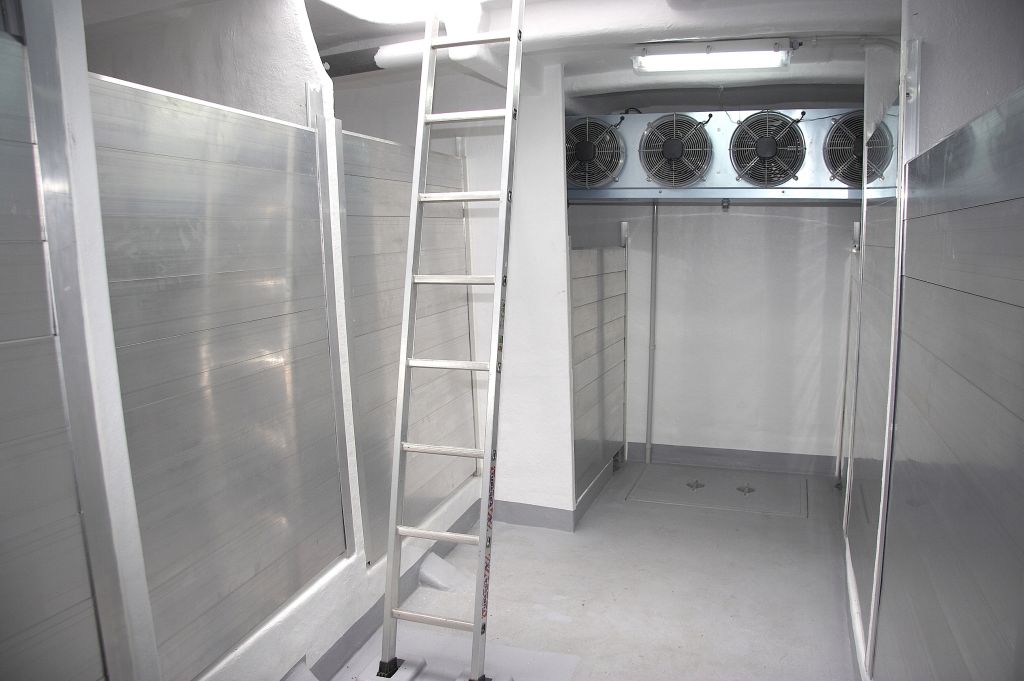

Hold capacity
50 m3
Performance
Max speed
14 kn
Economic speed
10 kn
Propulsion

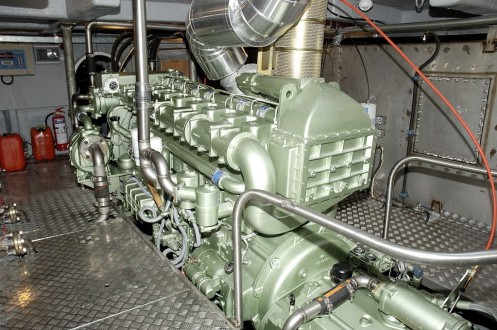

Main engines
800 HP
Propulsion
Propeller
Construction material
Material
GRP
Equipment
Vertical hydraulic hauler.
Hydraulic seine furler.

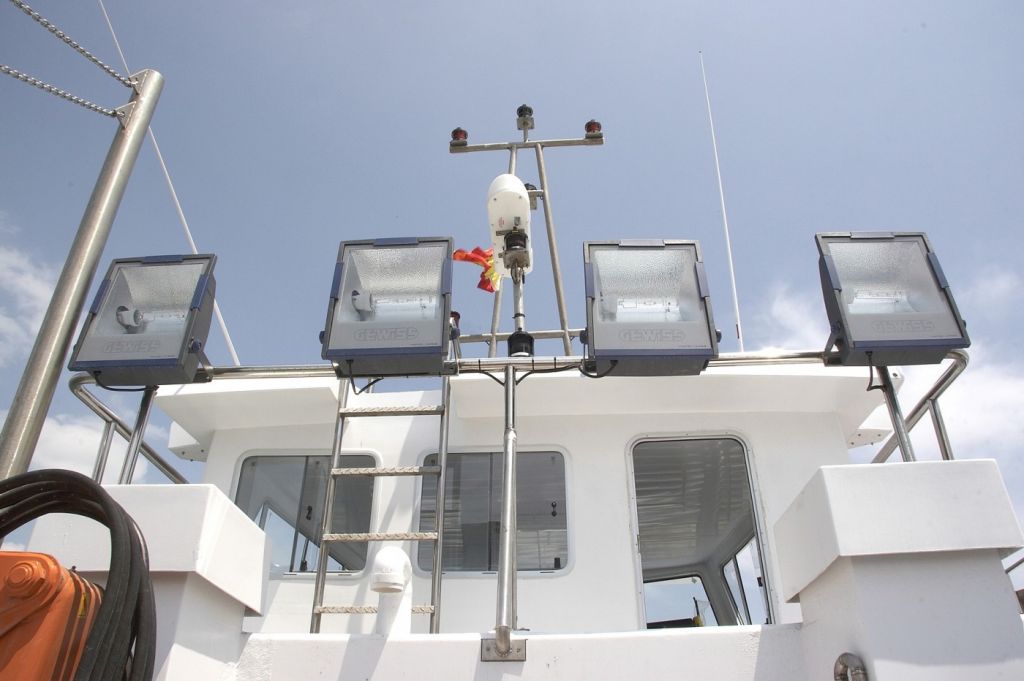

A mast aft of the wheelhouse, with a boom.

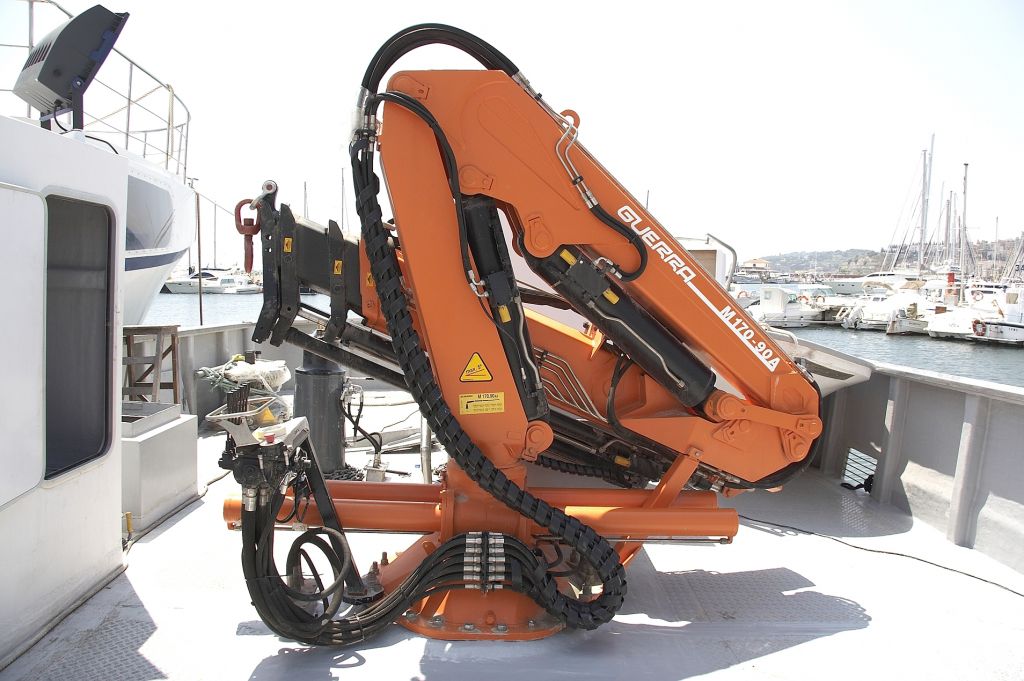

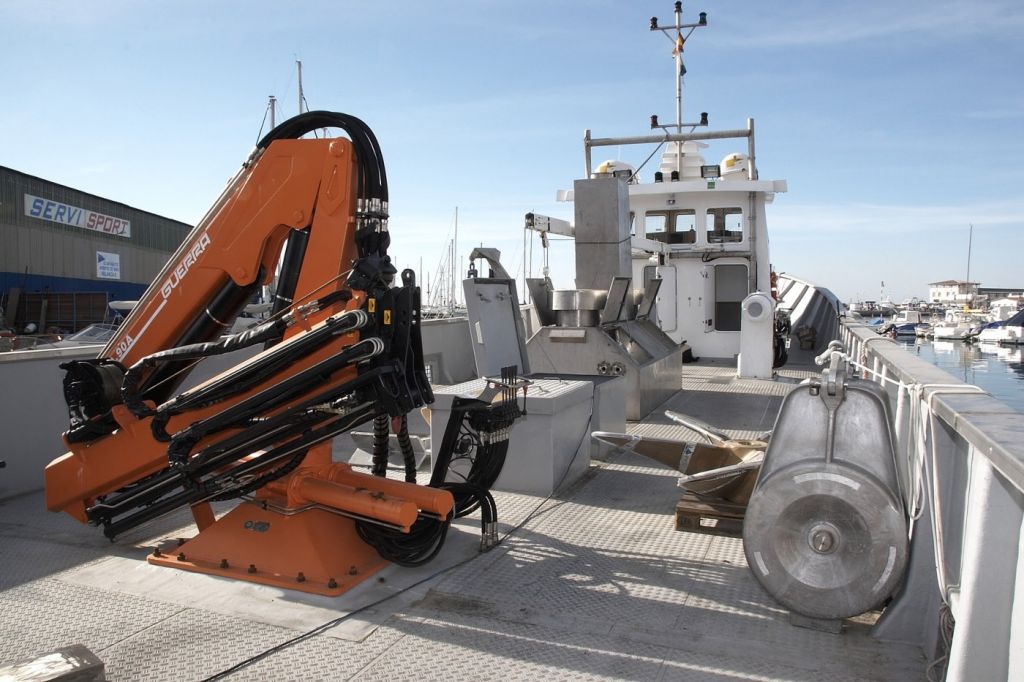

15 tn. crane with 2000 kg winch.
5 tn. crane with 1000 kg winch.
Hydraulic windlass with two cascading reels.
Net hauler, mounted on the main hook.
Side davit.
Ice machine with 1500kg/day capacity.
